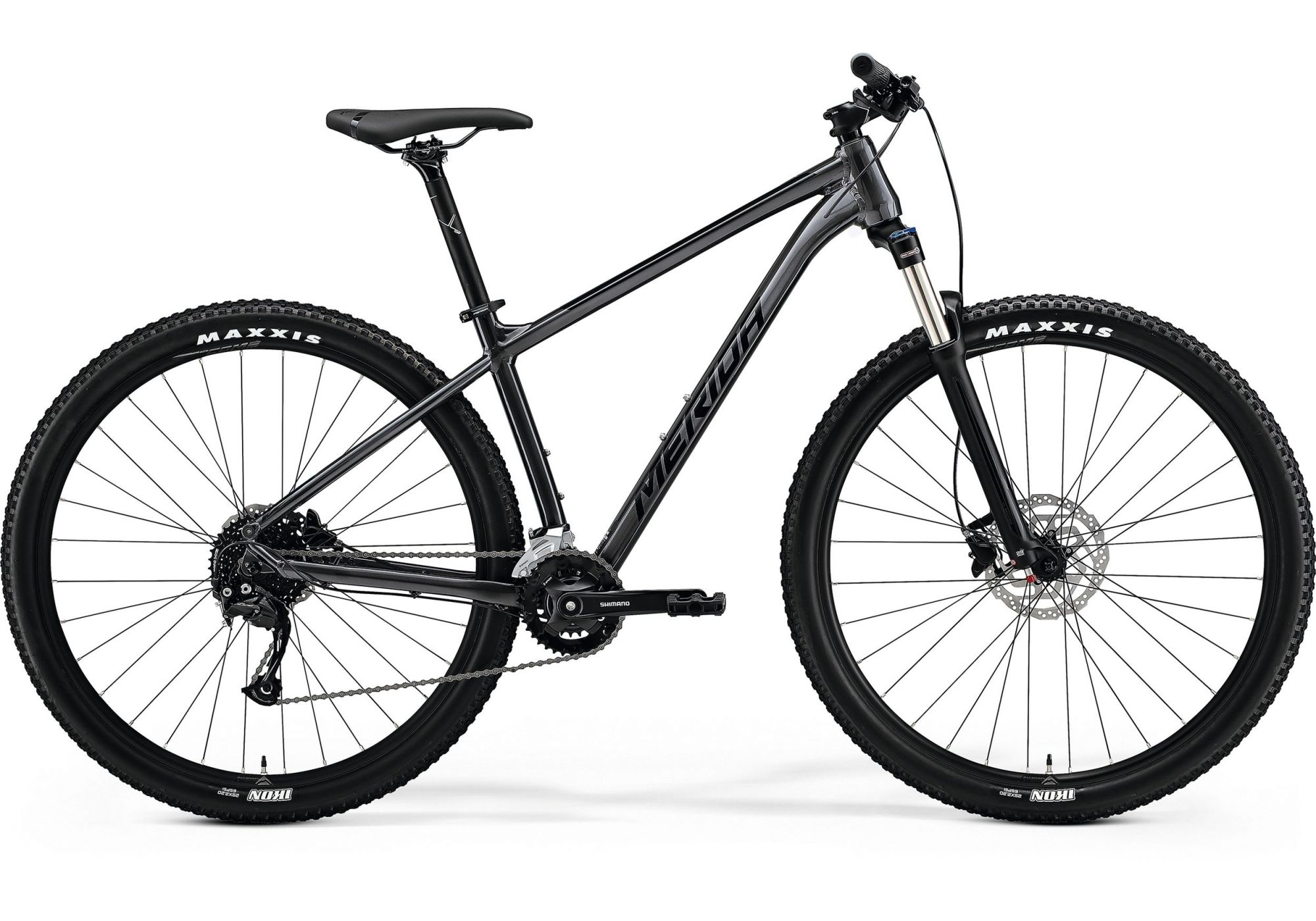

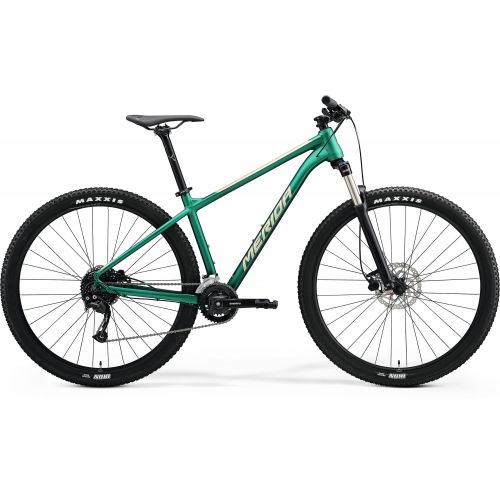

Featuring a 100 mm air suspension fork and fast-rolling 29er wheels, the BIG.NINE 100 allows you to cover ground quickly and comfortably. The slightly more minimalistic double chainring setup provides a broad range of gears, perfect for long off-road sessions and fast blasts through the urban jungle. The slightly more upright riding position puts less strain on the lower back and also improves the visibility of what lies ahead.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The carbon and LITE framed BIG.NINE, with its racing geometry, is an ideal companion on XC and marathon race tracks whilst the more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. The BIG.NINE range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
Double butted aluminium frame with 29er wheels
Less aggressive and more upright geometry for maximum control and comfort
SR Suntour 100 mm travel air suspension fork with lockout
Shimano 9-speed drivetrain with double chainring setup
Hydraulic disc brakes
Internal cable routing
Availability Everything found in the catalog is available in our stores and warehouses | |||||
---|---|---|---|---|---|
Color: | Frame size: | Price: | Location: | Barcode: | |
Green | 17" / M | 909.00 EUR | V L N |
4710949827250
|
Add to cart |
Grey / Black | 17" / M | 909.00 EUR | K28 V L N |
4710949827304
|
Add to cart |
Green | 18.5" / L | 909.00 EUR | K28 V L N |
4710949827243
|
Add to cart |
Grey / Black | 18.5" / L | 909.00 EUR | K28 V L N |
4710949827298
|
Add to cart |
Green | 20" / XL | 909.00 EUR | K28 V L N |
4710949827274
|
Add to cart |
Grey / Black | 20" / XL | 909.00 EUR | K28 V L N |
4710949827328
|
Add to cart |
Green | 22" / XXL | 909.00 EUR | V L N |
4710949827281
|
Add to cart |
Grey / Black | 22" / XXL | 909.00 EUR | K28 V L N |
4710949827335
|
Add to cart |
Specification | |
---|---|
Stem | MERIDA COMP CC Aluminium 31.8mm diameter 7° stem angle S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm |
Permitted max. weight | 135 kg |
Suspension | Front suspension |
Cassette | Shimano HG200 11-36 teeth 9 speed |
Tyres | Maxxis Ikon 29x2.2" wire |
Spokes | Black stainless |
Shift levers | Shimano Altus |
Seatpost | MERIDA COMP CC Aluminium 30.9mm diameter 0mm setback |
Seat clamp | MERIDA COMP QR |
Saddle | MERIDA COMP SL V-mount |
Rims | MERIDA COMP CC 20mm inner width Aluminium |
Pedals | VP VPE-891 |
Rear hub | Shimano TX505 135x9mm width rear hub 32 spoke holes Centerlock |
Front hub | Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock |
Headset | MERIDA M2345 |
Brakes | Hydraulic disc brakes |
Handlebars | MERIDA EXPERT CC Aluminium 720mm width 10mm rise |
Grips | MERIDA COMP EC |
Rear derailleurs | Shimano Alivio Shadow SGS |
Front derailleurs | Shimano M2020-TS |
Crankset | Shimano MT101-2 36-22 teeth 170 mm-S, 175 mm-M up |
Chain | KMC M99 |
Rear brakes | Tektro M275 2 piston Shimano RT10 160 mm rotor |
Front brakes | Tektro M275 2 piston ROTORS Shimano RT10 180 mm rotor |
Bottom bracket | FSA TH-7420ST Cartridge Bearing |
Fork | SR Suntour XCR32 LOR Air 100mm suspension travel Lockout 46mm fork offset |
Gears | 2 x 9 |
Frame | BIG.NINE TFS III Aluminum 29x2.25" max. wheelsize 135x9mm axle standard BSA bottom bracket standard |
Wheel size | 29 " |
Frame material | Aluminium |
Weight | 13.35 kg |
Catalog numbers | A62211A01103, A62211A00718, A62211A01104, A62211A00719, A62211A01105, A62211A00720, A62211A01106, A62211A00721 |
